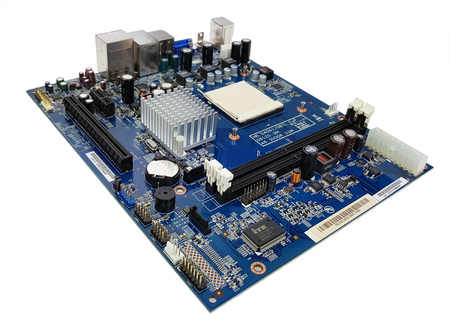

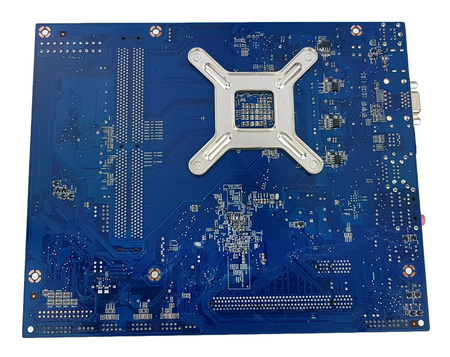

ACER MOTHERBOARD MODEL DA061/087L AM2

Specification:

• Processor Athlon X2 dual-core processor, AMD Athlon & AMD Sempron support
• Chipset nForce 720a
• Integrated graphics card GEFORCE 8200/9200
• Memory 2 DDR2 slots

Slots

• 1 x PCI Express x16 2.0
• 2 x PCI Express x1

HDD 2 x SATAII 3Gb/s connectors- Supports HDDs, Internal Solid State Drive (SSD)

Audio High Definition

Lan 10/100/1000Mbps

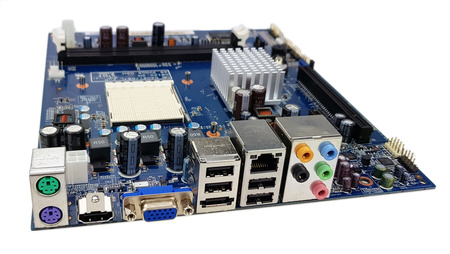

Rear panel

• 1 x PS/2 for mouse (green)
• 1 x PS/2 for keyboard (purple)
• 1 x Audio I/O
• 4 x USB 2.0 ports
• 1 x RJ45 LAN port
• 1 x VGA port
• 1 x HDMI
• 1 x ESATA

Ports on the board

• 3 x USB headers
• 1 x 4-pin CPU Fan connector
• 1 x 4-pin Rear System Fan connector
• 1 x 4-pin ATX 12V Power connector
• 1 x 20-pin ATX power connector
• 1 x Front Audio header
• 1 x Front Panel header
• 1 x Battery socket (3V)
• 1 x Clear CMOS jumper

BIOS Acer, Packard Bell

Format Micro-ATX
